Waveshare ESP32-S3 1.32inch AMOLED Round Touch Display Development Board, 466×466 Pixels, QSPI Interface, Supports Wi-Fi and BT 5
$29.99
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by www.kk-gibanje.si
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
$29.99
Price when purchased online
Free shipping
Free 30-day returns
Sold and shipped by www.kk-gibanje.si
Free 30-day returns Details
Product details
| Management number | 217004243 | Release Date | 2026/04/19 | List Price | $12.00 | Model Number | 217004243 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

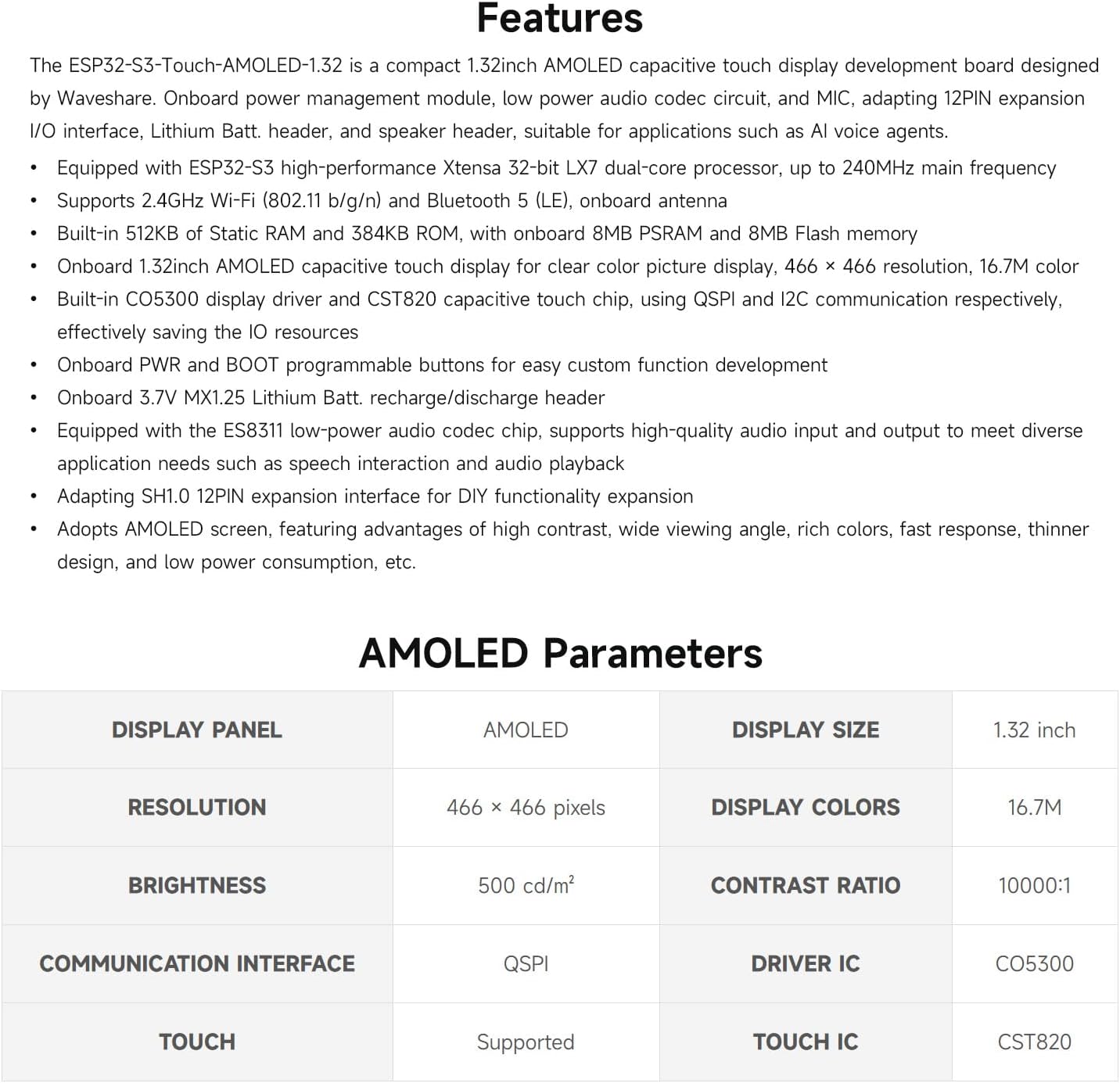

- High-Performance Processing and Connectivity: The ESP32-S3-Touch-AMOLED-1.32 is powered by the ESP32-S3 Xtensa 32-bit LX7 dual-core processor, running up to 240MHz, and supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE) with an onboard antenna for reliable wireless communication.
- Large Memory and Storage: It features 512KB of Static RAM, 384KB ROM, and an onboard 8MB PSRAM and 8MB Flash memory, offering plenty of space for storage and the execution of complex applications.
- AMOLED Capacitive Touch Display: Equipped with a 1.32-inch AMOLED capacitive touch screen, the display offers a resolution of 466 × 466 pixels and 16.7 million colors, delivering high-quality visuals with vibrant colors, fast response times, and low power consumption.
- Audio and Expansion Capabilities: The board includes the ES8311 low-power audio codec chip, enabling high-quality audio input and output for applications such as speech interaction and audio playback. It also supports a 12-pin expansion interface for easy functionality extension and has a 3.7V lithium battery header for power management.
- User-Friendly Development Features: Onboard programmable PWR and BOOT buttons make custom function development easier. The power management module and touch chips (CO5300 and CST820) optimize resource usage, making it ideal for AI voice agents, DIY projects, and more.
| Brand | waveshare |
|---|---|
| Model Name | ESP32-S3-Touch-AMOLED-1.32 |
| Unit Count | 1 Count |
| Chipset Type | ESP32-S3 |
| Manufacturer | Waveshare |
| Model Number | ESP32-S3-Touch-AMOLED-1.32 |
| BuiltIn Media | ESP32-S3-Touch-AMOLED-1.32 |
| Memory Clock Speed | 240 MHz |
| Warranty Description | 1 year |
| RAM Memory Technology | PSRAM |
| Memory Storage Capacity | 0.01 GB |
| Ram Memory Maximum Size | 8 MB |
| Main Power Connector Type | Type-C |
