ESP32 LoRa V3 915MHz ESP32S3 WiFi BT Development Board with 0.96" OLED Display + 5DBi LoRa Antenna, SX1262 LoRa32 Kit for Arduino Meshtastic IoT

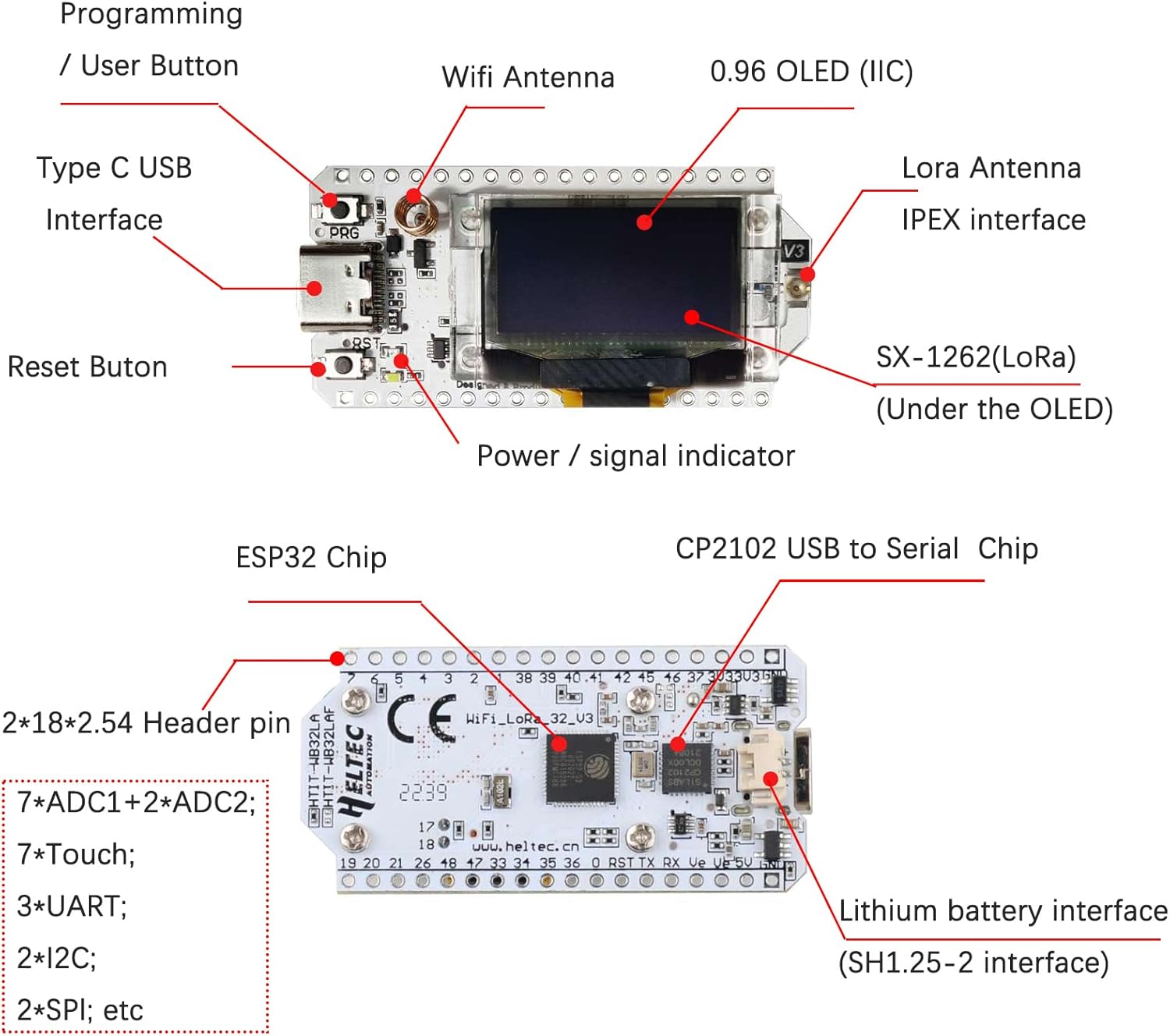

915MHz ESP32 LoRa V3 Development Board Features: - Microprocessor: ESP32-S3FN8 (Xtensa (R) 32-bit LX7 dual-core processor, five-stage pipeline rack Structure, frequency up to 240 MHz). - SX1262 LoRa node chip. - Type-C USB interface with a complete voltage regulator, ESD protection, short circuit protection, RF shielding, and other protection measures. - Onboard SH1.25-2 battery interface, integrated lithium battery management system (charge and discharge management, overcharge protection, battery power detection, USB / battery power automatic switching). - Integrated WiFi, LoRa, Blue-tooth three network connections, onboard Wi-Fi, Blue-tooth dedicated 2.4GHz metal spring antenna, reserved I-PX (U.FL) interface for LoRa use. - Onboard 0.96-inch 128x64 dot matrix OLED display can be used to display debugging information, battery power, and other information. - Integrated CP2102 USB to serial port chip, convenient for program downloading, and debugging information printing. - Support the Arduino development environment. - This is a standard LoRaWAN protocol that can communicate with any LoRa gateway running the LoRaWAN protocol. To make this code run, a unique license is needed. - With good RF circuit design and low-power design. Specifications Master Chip: ESP32-S3FN8 (Xtensa32-bit lx7 dual core processor) LoRa Node Chip: SX1262 USB to Serial Chip: CP2102 Frequency: 863~928MHz Max. TX Power: 21±1dBm Max. Receiving sensitivity: -134dBm@SF12 BW=125KHz Wi-Fi: 802.11 b/g/n, up to 150Mbps Bluetooth: Bluetooth 5 (LE) Hardware Resource: 7*ADC1 + 2*ADC2; 7*Touch; 3*UART; 2*I2C; 2*SPI; etc. Memory: 384KB ROM; 512KB SRAM; 16KB RTC SRAM; 8MB SiP Flash Interface: Type-C USB; 2*1.25 lithium battery interface; LoRa ANT(I-PX1.0); 2*18*2.54 Header Pin Battery: 3.7V lithium battery power supply and charging Operating Temperature: -20 ~ 70 ℃ Dimensions: 50.2 * 25.5* 10.2 mm 915MHz LoRa Antenna 5DBi SMA Male with U.FL/I-PX to SMA Connector Cable Frequency: 915MHz Gain: 5dBi VSWR: <1.5 Impedance: 50 Ω Antenna Length：19.5cm Antenna Connector: SMA Male U.FL/I-PX to SMA Connector Cable Length: 10cm Package Includes: 1 X ESP32 Lora V3 OLED development board 1 X JST 1.25mm-2P Connector 2.54 pin ( NO soldering, soldering required ) 1 X 915MHz LoRa Antenna with U.FL/I-PX to SMA Connector Cable

• LoRa + Wi-Fi + Bluetooth + OLED display classic IoT dev-board, perfect for Meshtastic LoRaWAN
• MCU: ESP32-S3FN8, LoRa Chip: SX1262, USB Socket: Type-C, USB to Serial Chip: CP2102
• Onboard SH1.25-2 battery interface, support 3.7V lithium battery to power, lithium battery not inlcuded, recommended for type C 5V power
• If your computer cannot connect to the LoRa board, please install CP210x driver first. Link: https://resource(DOT)heltec(DOT)cn/download/CP210x
• The WiFi LoRa 32 don't have an external PSRAM, Bluetooth and Wi-Fi can not be used at the same time
• It is the best option for smart cities, farms, homes, industrial control, house security, wireless meter reading, and IoT developers
• What you will get: 1 X ESP32 Lora V3 OLED development board + 1 X 915MHz LoRa Antenna with U.FL/I-PX to SMA Connector Cable + 1 X JST 1.25mm-2P Connector + 2.54 pin ( NO soldering, soldering required )
