18" deep 24" wide undercounter ADA height all-refrigerator
Product details
| Management number | 230223655 | Release Date | 2026/06/18 | List Price | $658.80 | Model Number | 230223655 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
<p>Summit's shallow depth series of built-in undercounter refrigeration brings full functionality to kitchen islands, wet bars, and other settings with space limitations.Model ASDS2413IF is a 24" wide all-refrigerator sized under 18" deep. It comes in a 32" height to fit under lower ADA compliant counters, with adjustable legs and a sliding kickplate cover that also allows you to raise the overall height up to 34" to fit standard counter spaces. The front-breathing system allows built-in installation, while the fully finished black cabinet also allows freestanding use. This unit has a sealed rear and right angle cord for a better fit. The door features an integrated stainless steel frame designed to accept full panel overlays, allowing users to seamlessly blend the unit into their own cabinetry design (panel size: 28 3/16" H x 23 5/16" W; maximum weight: 10 lbs.). Customers provide their own handle to complete the look.Inside, the ASDS2413IF features stainless steel construction for improved durability and sanitation. Fan-forced cooling ensures even temperature distribution and fast temperature recovery. Recessed LED lighting offers an attractive yet efficient look. The digital thermostat makes it easy to manage the interior temperature. This unit includes cantilevered shelving in chrome for flexible storage. Additional features include an open door alarm, high temperature alarm, and Sabbath mode setting that lets you disable some of the electrical elements during periods of observance.The ASDS2413IF refrigerator is ETL-S listed to NSF-7 commercial standards but can also be used in the home. With its deluxe style, user-friendly features, and uniquely shallow depth, this unit offers premium value for a variety of settings. Additional 18" deep choices are available in 15", 19", and 24" widths, including outdoor refrigerators, refrigerator drawers, wine cellars, and more.</p>
3.1 cu.ft. interior for residential or commercial cold storage
Unique 17.75" shallow depth is ideal for wet bars, island kitchens, and other undercounter areas with limited footprint space
32" height allows easy installation under lower ADA compliant counters
Leveling legs can be extended up to 2", with a slide-out kickplate that allows you to raise the overall height from 32" up to 34" if used under more standard sized cabinets
Front-breathing design lets you make the best use of space by installing your appliance under the counter
Walls and floor are constructed from stainless steel for added strength and easy cleanup
Integrated stainless steel door frame accepts full overlay panels, allowing you to customize the refrigerator door or blend it into your cabinetry design; panel size: 23 5/16" W x 28 3/16" H and at least 3/4" thick; 10 lbs. maximum; customers provide their own handles
Keyed lock for a secure interior (2 keys included)
No-frost operation for minimum user maintenance
Fan-forced cooling ensures fast temperature recovery and that the unit is evenly cooled from top to bottom
Electronic controls located inside the unit for precise temperature management, with a readout viewable in Celsius or Fahrenheit at the touch of a button
Efficient and attractive presentation with LED lighting that can be adjusted between three levels of brightness
Adjustable chrome shelves with stainless steel clips allow you to adjust the shelf height for the best fit
Audible alarm will sound if the door is left open longer than one minute
High temperature alarm sounds if the unit's interior goes out of the recommended range
Optional setting lets you disable the lighting and alarm for up to 48 hours
Unit will retain its last settings when power is restored in the event of power loss
Flat hinge ensures no added height is needed when installing under a counter
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
Space-saving design with no exposed coils that offers easier cleanability
ETL-S listed to NSF-7 Standards for use in commercial establishments
Allows the unit to be used freestanding
Environmentally friendly design with no ozone-damaging chemicals
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
| Brand | Summit Appliance |
|---|---|
| Refrigerator type | Compact Refrigerators |
| Volume capacity | 3.1 cu.ft. |

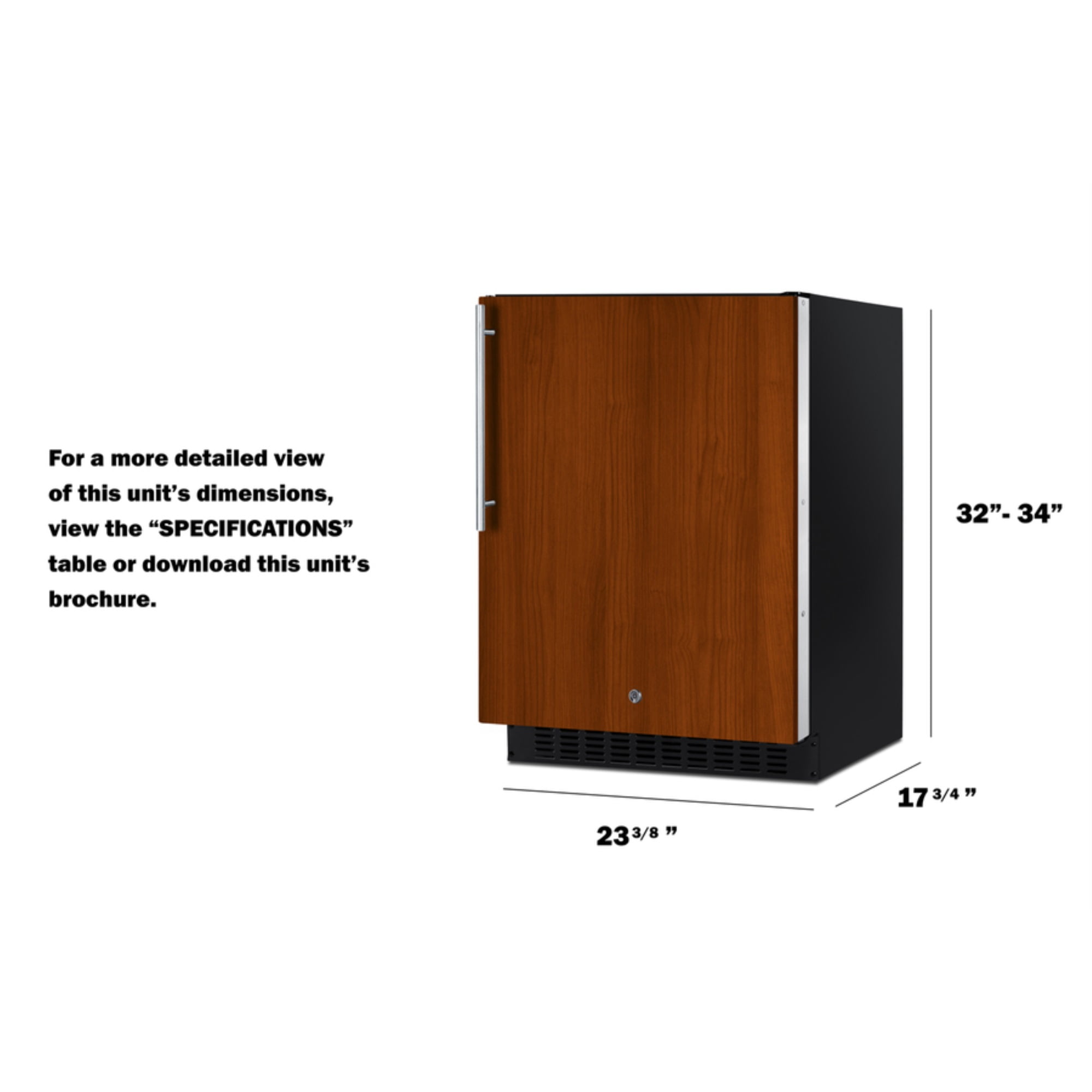

| Dimensions | 17.75 x 23.38 x 32.00 in |
| Color category | Black |
| Freezer configuration | Freezerless |
| Energy efficiency rating | 0 |
| Defrost type | Automatic |
| Number of doors | 1 |
| Rec location | Indoor |
| Rec. use | Commercial |
| Door material | Stainless steel |
| Shelf material | Chrome |
| Number of shelves | 3 |
| Ice maker type | No Ice Maker |
| Refrigerator dispenser type | No Dispenser |
| Refrigerator feature | Digital Temperature Control |
| Assembled product weight | 89 lbs |
| Model | ASDS2413IF |
| Product name | 18" deep 24" wide undercounter ADA height all-refrigerator |
| Has written warranty | No |
| Has nrtl listing certification | N |
| Volts | 115 V |
